Inverse Functions: Arctangent and Angle Between Two Lines (Part 24)

Here’s a straightforward application of arctangent that, a generation ago, used to be taught in a typical Precalculus class (or, as it was called back then, analytical geometry).

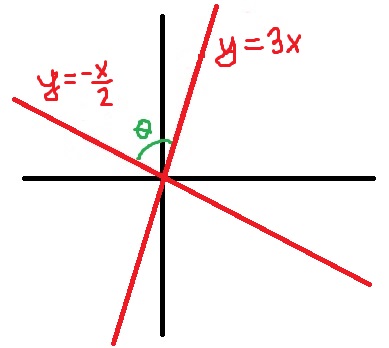

Find the smallest angle between the lines y= 3x and y = -x/2.

dotproduct3

This problem is almost equivalent to finding the angle between the vectors \langle 1,3 \rangle and \langle -2,1 \rangle. I use the caveat almost because the angle between two vectors could be between 0 and \pi, while the smallest angle between two lines must lie between 0 and \pi/2.

This smallest angle can be found using the formula

\theta = \displaystyle \tan^{-1} \left( \left| \frac{m_1 - m_2}{1 + m_1 m_2} \right| \right),

where m_1 and m_2 are the slopes of the two lines. In the present case,

\theta = \tan^{-1} \left( \left| \displaystyle \frac{ 3 - (-1/2) }{1 + (3)(-1/2)} \right| \right)

\theta = \tan^{-1} \left( \left| \displaystyle \frac{7/2}{-1/2} \right| \right)

\theta = \tan^{-1} 7

\theta \approx 81.87^\circ.

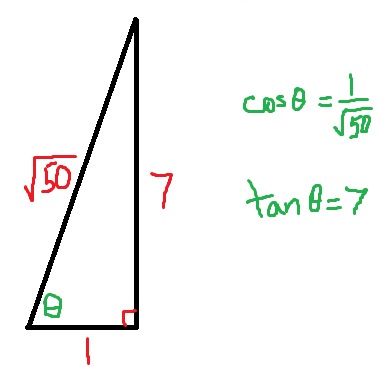

Not surprisingly, we obtain the same answer that we obtained a couple of posts ago using arccosine. The following picture makes clear why \tan^{-1} 7 = \cos^{-1} \displaystyle \frac{1}{\sqrt{50}}.

dotproduct4In tomorrow’s post, I’ll explain why the above formula actually works.
