# How to picture an exponent

While I’m easily amused by math humor, I rarely actually laugh out loud after reading a comic strip. That said, I laughed heartily after reading this one.

Source: https://xkcd.com/2283/

# Engaging students: Laws of Exponents

In my capstone class for future secondary math teachers, I ask my students to come up with ideas for engaging their students with different topics in the secondary mathematics curriculum. In other words, the point of the assignment was not to devise a full-blown lesson plan on this topic. Instead, I asked my students to think about three different ways of getting their students interested in the topic in the first place.

I plan to share some of the best of these ideas on this blog (after asking my students’ permission, of course).

This student submission comes from my former student Lyndi Mays. Her topic, from Pre-Algebra: the Laws of Exponents (with integer exponents) While thinking about different activities that I could do with Laws of Exponents I decided to try making a bingo card. I like this idea because it’s a way for students practice on different problems while playing a game. The way I have it set up to use in a classroom, I have questions that I would ask. One example is . I would put this up on the board and the student has to solve it and see if they have the answer on their card. I would tell the students what the answers were until after we were done with the activity so that they’re not just waiting to hear the answer instead of doing the work. If a student got a “bingo” then I would check their answers and if they got them all right then I would have an incentive like 5 extra points on a homework assignment of their choice or something along those lines.

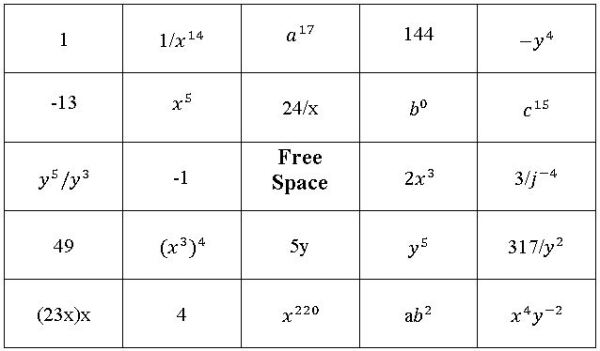

So, if I wrote on the board the equations $x^4(x)$, $x^0 y^5$, $(2x^2-3y^5)^0$, and $x^5 y^{-2}$ . If a student received this card, then on these questions they would get a “bingo” on the descending diagonal from left to right. You’ll also notice that I included some wrong answers in a few of the spots. Hopefully the students would notice they were not all the way simplified and would know they couldn’t use those.

Students can use Laws of Exponents to help them understand Laws of Logarithms. They will use the Laws of Exponents throughout Calculus courses when taking the derivatives or integrals of different problems. It’s important for students to understand these laws so that they can simplify problems and use them to their advantage. One example is when the student is asked to solve $\int x^{-4} \, dx$. If the student has a good understanding of the Laws of Exponents, then their first reaction will be to change it to $\int dx/x^4 = -1/3 x^3 + C$. Having this understanding is necessary for this problem and helps when students already know the Laws of Exponents so that they’re not having to learn extra material basically.

Archimedes is the one that discovered the Laws of Exponents. He did this by breaking everything down as much as possible. To show an example,

$3^4 \times 3^2$ = (3×3×3×3) (3×3)  We can do this just by know the definition of exponents

= 3×3×3×3×3×3     Once we remove the parentheses we see we’re just multiplying 3 together 6 times.

= $3^6$                         This is just the definition of exponents again

Teaching the students the Laws of Exponents this way can show them how a mathematician discovers all these rules that we follow and gives them a better understanding of the laws. Opening up this interest might help the students become more interested in math. Another example that I would show students would be $y^5/y^3$. From here I would show the students that we could break it down to $(y \times y \times y \times y \times y)/(y \times y \times y)$. Hopefully, then the students would see that you could divide and get rid of the denominator, $y×y=y^2$, and this is why it is ok to subtract when a term with an exponent is being divided by something with the same base. This is also a really good way to show students why they can NOT use these laws when they’re working with terms with different bases.

References:

Exponentiation. (2017, September 1). In Wikipedia, The Free Encyclopedia. Retrieved

23:05, September 1, 2017, from https://en.wikipedia.org/w/index.php?title=Exponentiation&oldid=798388543

# Engaging students: Negative and zero exponents

In my capstone class for future secondary math teachers, I ask my students to come up with ideas for engaging their students with different topics in the secondary mathematics curriculum. In other words, the point of the assignment was not to devise a full-blown lesson plan on this topic. Instead, I asked my students to think about three different ways of getting their students interested in the topic in the first place.

I plan to share some of the best of these ideas on this blog (after asking my students’ permission, of course).

This student submission again comes from my former student Austin DeLoach. His topic, from Algebra: negative and zero exponents.

B1. How can this topic be used in your students’ future courses in mathematics or science?

The topic of negative and zero exponents is very important when or if the students get to calculus. Although that will be several years down the line, having a solid fundamental grasp on the idea of negative and zero exponents will help them understand derivatives a lot better. Because derivatives of “simple” functions just multiply the coefficient by the exponent and then subtract one from the exponent, it is important for the students to have a good understanding of what negative and zero exponents are. If they do not understand already, they will be confused about why, for example, the derivative of 3x is just 3. It also greatly simplifies derivatives of things like 4/x2, as the students will simply be able to recognize that that is the same thing as 4x-2 and follow standard rules instead of needing to think about the quotient rule and waste time with that. It will also help them in the more near future when they work with simplifying expressions with the exponents written in different terms (i.e. with a positive exponent or with a negative exponent in the denominator), as it will help them recognize what simplifications mean the same thing. Explaining that understanding negative exponents will thoroughly help them in the future may be enough for some students to want to solidify their grasp on the topic.

D2. How was this topic adopted by the mathematical community?

Although this is not about the early adoption of negative and zero exponents in the mathematical community, Geoffrey D. Dietz points out more recent bias for or against the use of negative exponents in textbooks in his Journal of Humanistic Mathematics (linked at the bottom of this answer). Dietz brings up the idea of what is considered “simplified” when it comes to negative exponents vs exponents in denominators. He rated over 20 mathematics textbooks from 1825 to 2012 from “very tolerant” of negative denominators in simplified answers to “very intolerant”. Interestingly, his first encounter with an “intolerant” textbook was not until the 20th century, and textbooks began getting more polarized as very tolerant or very intolerant closer to the end of the 20th century and getting closer to today. This is interesting when it comes to adoption by the mathematical community, as there is a significant inconsistency, even today, about whether negative exponents can be considered “simplified” or not. It will be important to point this out to your students so they can be prepared for their future teachers who may have different preferences on simplification from you, as that will help them understand the polarity in the mathematical community on this topic, as well as hopefully make them want to understand what negative exponents really mean. Dietz recommends giving your students practice with not only converting negative exponents to positive exponents, but also from positive to negative, in order to make sure they are prepared for whatever preferences come up as well as solidifying their understanding of what negative exponents mean.

E1. How can technology be used to effectively engage students with this topic?
This video from Khan Academy does a good job at explaining why negative and zero exponents are what they are. Although Khan Academy videos will likely not be the most engaging for all students, this video is short enough to maintain the attention of the class, and it the logic in it is helpful for the students who don’t understand how the definition of negative and zero exponents was decided on. The presenter does well explaining the idea of “going backwards” and dividing by the number when you decrease the exponent. It’s a good way to explain the “why” for students who ask about it, and it also is a good way to change up the pace for students, as playing videos during class could prevent it from becoming stale for the students, keeping them engaged for longer.

# My Favorite One-Liners: Part 42

In this series, I’m compiling some of the quips and one-liners that I’ll use with my students to hopefully make my lessons more memorable for them.

The function $f(x) = a^x$ typically exhibits exponential growth (if $a > 1$) or exponential decay (if $a < 1$). The one exception is if $a = 1$, when the function is merely a constant. Which often leads to my favorite blooper from Star Trek. The crew is trying to find a stowaway, and they get the bright idea of turning off all the sound on the ship and then turning up the sound so that the stowaway’s heartbeat can be heard. After all, Captain Kirk boasts, the Enterprise has the ability to amplify sound by 1 to the fourth power.

# My Mathematical Magic Show: Part 9

This mathematical trick was not part of my Pi Day magic show but probably should have been. I first read about this trick in one of Martin Gardner‘s books when I was a teenager, and it’s amazing how impressive this appears when performed. I particularly enjoy stumping my students with this trick, inviting them to figure out how on earth I pull it off.

Here’s a video of the trick, courtesy of Numberphile:

Summarizing, there’s a way of quickly determining $x$ given the value of $x^5$ if $x$ is a positive integer less than 100:

• The ones digit of $x$ will be the ones digit of $x^5$.
• The tens digit of $x$ can be obtained by listening to how big $x^5$ is. This requires a bit of memorization (and I agree with the above video that the hardest ones to quickly determine in a magic show are the ones less than $40^5$ and the ones that are slightly larger than a billion):
• 10: At least 10,000.
• 20: At least 3 million.
• 30: At least 24 million.
• 40: At least 100 million.
• 50: At least 300 million.
• 60: At least 750 million.
• 70: At least 1.6 billion.
• 80: At least 3.2 billion.
• 90: At least 5.9 billion.

# Exponents and the decathlon

During the Olympics, I stumbled across an application of exponents that I had not known before: scoring points in the decathlon or the heptathlon. From FiveThirtyEight.com:

Decathlon, which at the Olympics is a men’s event, is composed of 10 events: the 100 meters, long jump, shot put, high jump, 400 meters, 110-meter hurdles, discus throw, pole vault, javelin throw and 1,500 meters. Heptathlon, a women’s event at the Olympics, has seven events: the 100-meter hurdles, high jump, shot put, 200 meters, long jump, javelin throw and 800 meters…

As it stands, each event’s equation has three unique constants — $latex A$, $latex B$ and $latex C$— to go along with individual performance, $latex P$. For running events, in which competitors are aiming for lower times, this equation is: $latex A(BP)^C$, where $latex P$ is measured in seconds…

$B$ is effectively a baseline threshold at which an athlete begins scoring positive points. For performances worse than that threshold, an athlete receives zero points.

Specifically from the official rules and regulations (see pages 24 and 25), for the decathlon (where $P$ is measured in seconds):

• 100-meter run: $25.4347(18-P)^{1.81}$.
• 400-meter run: $1.53775(82-P)^{1.81}$.
• 1,500-meter run: $0.03768(480-P)^{1.85}$.
• 110-meter hurdles: $5.74352(28.5-P)^{1.92}$.

For the heptathlon:

• 200-meter run: $4.99087(42.5-P)^{1.81}$.
• 400-meter run: $1.53775(82-P)^{1.88}$.
• 1,500-meter run: $0.03768(480-P)^{1.835}$.

Continuing from FiveThirtyEight:

For field events, in which competitors are aiming for greater distances or heights, the formula is flipped in the middle: $latex A(PB)^C$, where $latex P$ is measured in meters for throwing events and centimeters for jumping and pole vault.

Specifically, for the decathlon jumping events ($P$ is measured in centimeters):

• High jump: $0.8465(P-75)^{1.42}$
• Pole vault: $0.2797(P-100)^{1.35}$
• Long jump: $0.14354(P-220)^{1.4}$

For the decathlon throwing events ($P$ is measured in meters):

• Shot put: $51.39(P-1.5)^{1.05}$.
• Discus: $12.91(P-4)^{1.1}$.
• Javelin: $10.14(P-7)^{1.08}$.

Specifically, for the heptathlon jumping events ($P$ is measured in centimeters):

• High jump: $1.84523(P-75)^{1.348}$
• Long jump: $0.188807(P-210)^{1.41}$

For the heptathlon throwing events ($P$ is measured in meters):

• Shot put: $56.0211(P-1.5)^{1.05}$.
• Javelin: $15.9803(P-3.8)^{1.04}$.

I’m sure there are good historical reasons for why these particular constants were chosen, but suffice it to say that there’s nothing “magical” about any of these numbers except for human convention. From FiveThirtyEight:

The [decathlon/heptathlon] tables [devised in 1984] used the principle that the world record performances of each event at the time should have roughly equal scores but haven’t been updated since. Because world records for different events progress at different rates, today these targets for WR performances significantly differ between events. For example, Jürgen Schult’s 1986 discus throw of 74.08 meters would today score the most decathlon points, at 1,384, while Usain Bolt’s 100-meter world record of 9.58 seconds would notch “just” 1,203 points. For women, Natalya Lisovskaya’s 22.63 shot put world record in 1987 would tally the most heptathlon points, at 1,379, while Jarmila Kratochvílová’s 1983 WR in the 800 meters still anchors the lowest WR points, at 1,224.

FiveThirtyEight concludes that, since the exponents in the running events are higher than those for the throwing/jumping events, it behooves the elite decathlete/heptathlete to focus more on the running events because the rewards for exceeding the baseline are greater in these events.

Finally, since all of the exponents are not integers, a negative base (when the athlete’s performance wasn’t very good) would actually yield a complex-valued number with a nontrivial imaginary component. Sadly, the rules of track and field don’t permit an athlete’s score to be a non-real number. However, if they did, scores might look something like this…

# Lessons from teaching gifted elementary students (Part 6b)

Every so often, I’ll informally teach a class of gifted elementary-school students. I greatly enjoy interacting with them, and I especially enjoy the questions they pose. Often these children pose questions that no one else will think about, and answering these questions requires a surprising depth of mathematical knowledge.

Here’s a question I once received:

255/256 to what power is equal to 1/2? And please don’t use a calculator.

Here’s how I answered this question without using a calculator… in fact, I answered it without writing anything down at all. I thought of the question as

$\displaystyle \left( 1 - \epsilon \right)^x = \displaystyle \frac{1}{2}$.

$\displaystyle x \ln (1 - \epsilon) = \ln \displaystyle \frac{1}{2}$

$\displaystyle x \ln (1 - \epsilon) = -\ln 2$

I was fortunate that my class chose 1/2, as I had memorized (from reading and re-reading Surely You’re Joking, Mr. Feynman! when I was young) that $\ln 2 \approx 0.693$. Therefore, we have

$x \ln (1 - \epsilon) \approx -0.693$.

Next, I used the Taylor series expansion

$\ln(1+t) = t - \displaystyle \frac{t^2}{2} + \frac{t^3}{3} \dots$

to reduce this to

$-x \epsilon \approx -0.693$,

or

$x \approx \displaystyle \frac{0.693}{\epsilon}$.

For my students’ problem, I had $\epsilon = \frac{1}{256}$, and so

$x \approx 256(0.693)$.

So all I had left was the small matter of multiplying these two numbers. I thought of this as

$x \approx 256(0.7 - 0.007)$.

Multiplying $256$ and $7$ in my head took a minute or two:

$256 \times 7 = 250 \times 7 + 6 \times 7$

$= 250 \times (8-1) + 42$

$= 250 \times 8 - 250 + 42$

$= 2000 - 250 + 42$

$= 1750 + 42$

$= 1792$.

Therefore, $256 \times 0.7 = 179.2$ and $256 \times 0.007 = 1.792 \approx 1.8$. Therefore, I had the answer of

$x \approx 179.2 - 1.8 = 177.4 \approx 177$.

So, after a couple minutes’ thought, I gave the answer of 177. I knew this would be close, but I had no idea it would be so close to the right answer, as

$x = \displaystyle \frac{\displaystyle \ln \frac{1}{2} }{\displaystyle \ln \frac{255}{256}} \approx 177.0988786\dots$

# Lessons from teaching gifted elementary school students (Part 6a)

Every so often, I’ll informally teach a class of gifted elementary-school students. I greatly enjoy interacting with them, and I especially enjoy the questions they pose. Often these children pose questions that no one else will think about, and answering these questions requires a surprising depth of mathematical knowledge.

Here’s a question I once received:

255/256 to what power is equal to 1/2? And please don’t use a calculator.

Answering this question is pretty straightforward using algebra:

$\displaystyle \left( \frac{255}{256} \right)^x = \displaystyle \frac{1}{2}$.

$\displaystyle x \ln \frac{255}{256} = \ln \displaystyle \frac{1}{2}$

$x \displaystyle \frac{ \displaystyle \ln \frac{1}{2} }{\ln \displaystyle \frac{255}{256}}$

However, doing this without a calculator — and thus maintaining my image in front of these elementary school students — is a little formidable.

I’ll reveal how I did this — getting the answer correct to the nearest integer — in tomorrow’s post. In the meantime, I’ll leave a thought bubble if you’d like to think about it on your own.

# Engaging students: Negative and zero exponents

In my capstone class for future secondary math teachers, I ask my students to come up with ideas for engaging their students with different topics in the secondary mathematics curriculum. In other words, the point of the assignment was not to devise a full-blown lesson plan on this topic. Instead, I asked my students to think about three different ways of getting their students interested in the topic in the first place.

I plan to share some of the best of these ideas on this blog (after asking my students’ permission, of course).

This student submission again comes from my former student Jennifer Elliott. Her topic, from Algebra: negative and zero exponents.

• Technology Engage
• I found the website, https://www.mangahigh.com/en-us/math_games/number/exponents/negative_exponents. It is an interactive game that gives a brief explanation of what negative and zero exponents are. Then you can select the difficulty level and the number or questions you wish the children to try. If this a new topic introduced, then the student may miss several. That is ok. As a teacher, you are setting a ground level for the direction of your teach. At the end of the lesson, you can utilize the same game to check the students’ new level of understanding for the topic.

• Activity Engage
• The students will engage in prior knowledge that might be needed to understand the idea behind negative and zero exponents. First I will make different notecards, some with definitions such as negative number, fractions, number line, and reciprocals and others. Then I will have some index cards with different exponents including positive, negative, and zero. The cards will have different values such as one might say 10^-1 and one might say 1/10. Every student will have a note card. I will have different sections set up in the room. Example would be definitions, 1, <1, and >1 and have students find which section they belong in. I could also have them find their card partner (different way of writing the same number) and the word matching the definition. Then maybe from there, that group find their counter-partner (I would maybe not use definitions for this part) such that the group with 10^-2 would find the group with 10^2. This would set up groups for them to explore the idea of negative and zero exponents.
• This activity came from myself but I had some ideas from different pictures on Pinterest, but nothing in particular to source.)

• Curriculum Engage
• To show how this might be used later in class, I will work on the idea of decay. The idea of decay can be introduced in science and history off the top of my head. Although the students might be years away from the idea of physics and decay value, this will be a fun way to engage students and hopefully recall the information when a lesson on decay comes in the future. The idea is found on several different websites and has to do with the idea of exponential decay using M&M’s. The idea is to create (or use one of the several choices) of a table to record the data from the trials. The group(s) count the total number of M&M’s. The total is the starting number for trial 0. Trial number would be the first column. The second column would be the number of M&M’s. For trial one, you would dump the bag/cup of candy and the student would remove all the M&M’s that do not have the M showing. Shake the candy up again, and dumb out. Continue with trials until you do not have any M&M’s left. Then the third column will be what percentage of the bag they have left (example maybe ½ of the M&M’s remain.) This activity will lead to the discovery of decay and how it uses zero and negative exponents. The starting point of trial 0 has us with “1” bag/cup of candy and then it will decrease from there. Just like x^0=1 which is great than x^-2=1/2 and so on. At the end, of the complete lesson the idea of using negative exponents in sports, sound, radioactive waste, and scientific notation will be a start of what that students will learn in other subjects in the future.

# 1729

The following little anecdote probably deserves to be known by every secondary mathematics teacher. From Wikipedia (see references therein for more information):

1729 is known as the Hardy–Ramanujan number after a famous anecdote of the British mathematician G. H. Hardy regarding a visit to the hospital to see the Indian mathematician Srinivasa Ramanujan. In Hardy’s words:

I remember once going to see him when he was ill at Putney. I had ridden in taxi cab number 1729 and remarked that the number seemed to me rather a dull one, and that I hoped it was not an unfavorable omen. “No,” he replied, “it is a very interesting number; it is the smallest number expressible as the sum of two cubes in two different ways.”

The two different ways are these:

1729 = 13 + 123 = 93 + 103

The quotation is sometimes expressed using the term “positive cubes”, since allowing negative perfect cubes (the cube of a negative integer) gives the smallest solution as 91 (which is a divisor of 1729):

91 = 63 + (−5)3 = 43 + 33

Numbers that are the smallest number that can be expressed as the sum of two cubes in n distinct ways have been dubbed “taxicab numbers”. The number was also found in one of Ramanujan’s notebooks dated years before the incident, and was noted by Frénicle de Bessy in 1657.
